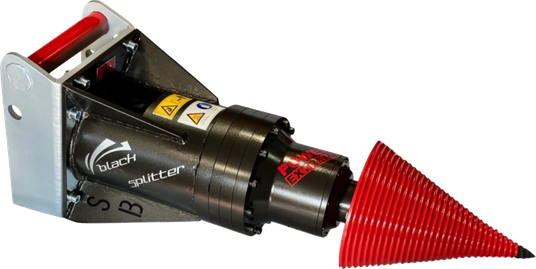

The Black Splitter SB cone splitter is designed for carrier vehicles weighing from 3  to 12 metric tons.  The combination of its light weight design and high torque output enables splitting of particularly difficult and fibrous wood, e.g. Poplar, even with smaller carriers. For much larger carrier vehicles, either the Black Splitter SBX (12 to 28 metric tons) or the Black Splitter SBXX (25 to 40 metric tons) is ideally suited for effective and efficient splitting of extreme timber.





For technical data, please see the table below.

Black Splitter SB

Black Splitter Kegelspalter

Black Splitter SBX

Kegelspalter Black Splitter SBX

Black Splitter SBXX

Technical data

Black Splitter SB

does not include excavator bracket or hydraulic hoses



excavator: 3 to 12 metric tons



weight: 270 kg



cone:

chromium-steel

quadruple helical thread

300 mm dia

2 pieces

48 mm thread pitch



hydraulic motor: planetary gear

input pressure 180-240 bar

max. 220 l/min



torque: max. 12000 Nm



drive shaft:

100 mm dia, bearing-mounted and sealed

Black Splitter SBX

does not include excavator bracket or hydraulic hoses



excavator: 12 to 28 metric tons



weight: 635 kg



cone:

chromium-steel

quadruple helical thread

400 mm dia

3 pieces

48 mm thread pitch



hydraulic motor: planetary gear

input pressure max. 320 bar

max. 268 l/min



torque: max. 30000 Nm



drive shaft:

130 mm dia, bearing-mounted and sealed



Black Splitter SBXX

does not include excavator bracket or hydraulic hoses



excavator: 25 to 40 metric tons



weight: 890 kg



cone:

chromium-steel

quadruple helical thread

400 mm dia

3 pieces

48 mm thread pitch



hydraulic motor: planetary gear

input pressure max. 340 bar

max. 424 l/min



torque: max. 60000 Nm



drive shaft:

170 mm dia, bearing-mounted and sealed
